RAM U-Bolt Rail Handlebar Mount with Tab-Tite 9.7" Tablet Cradle using Case

SKU: RAM-B-149Z-TAB20U-P

Reviews RAM-B-149Z-TAB20U-P RAM U-Bolt Rail Handlebar Mount with Tab-Tite 9.7" Tablet Cradle using Case /assets/thumb/RAM-B-149Z-TAB20U-P.jpg?20200714030503 140
In Stock
SELECT Double Clamp Arm Length
QTY

Free Shipping on orders over $100* (*Excludes some areas)



In-Store Pick Up - $0.00
Please confirm what time you would like to pick the order up in the delivery instructions and we will do our best to have the order ready for you upon arrival.


The RAM-B-149Z-TAB20U is a full kit that will allow you to mount an iPad Air 1 or 2 with a case, skin or sleeve onto a handlebar rail.

The RAM-B-149Z-TAB20U consists of the following RAM (B Size) components:

  • 1 x RAM Tab-Tite™ Cradle for Apple iPad Air 1-2 & Samsung Galaxy Tab A 9.7 WITH CASE, SKIN OR SLEEVE (RAM-HOL-TAB20U)
  • 1 x RAM 2.5" Round Base with AMPs Hole Pattern and 1" Ball (RAM-B-202U)
  • 1 x Double Clamp Arm (Length of your choice - See below)
  • 1 x U-Bolt Rail Base (RAM-B-231ZU)

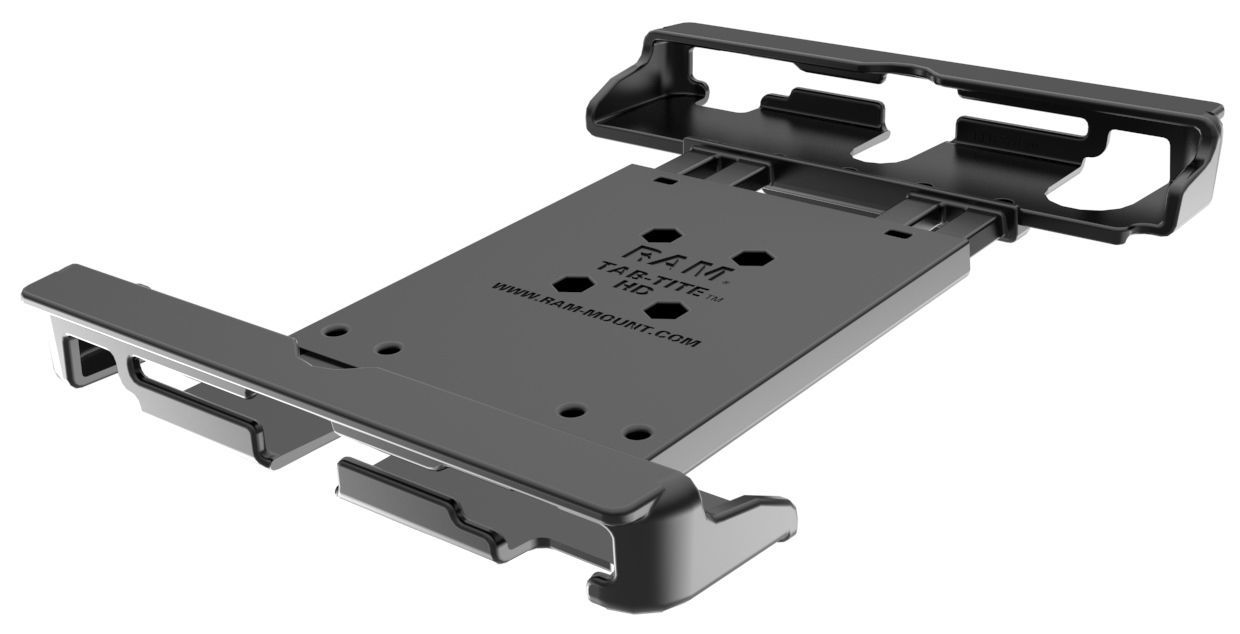

RAM Tab-Tite™ Cradle for Apple iPad Air 1-2 & Samsung Galaxy Tab A 9.7 WITH CASE, SKIN OR SLEEVE (RAM-HOL-TAB20U)

Get the most out of your tablet with the RAM Tab-Tite™ spring loaded, quick release cradle.

With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit.

This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go.

Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below.

It is important to verify the dimensions of your tablet when determining the overall size.

Cradle Dimensions:

  • Height: 9.5" to 12.125"
  • Width: 6.55" to 7.43"
  • Depth: 0.3" to 0.875"

May not be suitable for any other size tablet or device - please check dimensions first.


RAM Double Socket Clamp Arm (Select length prior to checkout);

  • SHORT (RAM-B-201U-A) Overall Length: 6cm Socket-To-Socket Length: 4.5cm
  • STANDARD (RAM-B-201U) Overall Length: 9cm Socket-To-Socket Length: 7.6cm
  • LONG (RAM-B-201U-C) Overall Length: 15cm Socket-To-Socket Length: 13.5cm

RAM U-Bolt Rail Base (RAM-B-231ZU)

The RAM motorcycle handlebar base contains a 1" rubber ball designed to sit at right angles to the mounting rail.

The Zinc coated metal u-bolt accommodates rails in diameter from 1.27cm (0.5") to 3.18cm (1.25") in diameter.

Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".


** This listing includes one double socket Clamp Arm only. Please select the length required prior to checkout.
* Device shown for illustration purposes only and is not included in purchase.

(RAM-B-149Z-TAB20U-P)

SKU RAM-B-149Z-TAB20U-P
Barcode # 793442939617
Brand RAM Mount
Shipping Weight 0.6000kg
