RAM Car Windscreen Suction Cup Mount Universal X-Grip 7-8" Tablets


Reviews RAM-B-166-UN8U-P RAM Car Windscreen Suction Cup Mount Universal X-Grip 7-8" Tablets /assets/thumb/RAM-B-166-UN8U-P.jpg?20200714030512 135
In Stock
SELECT Double Clamp Arm Length

Free Shipping on orders over $100* (*Excludes some areas)

In-Store Pick Up - $0.00
Please confirm what time you would like to pick the order up in the delivery instructions and we will do our best to have the order ready for you upon arrival.

RAM Mount Vehicle Suction Cup Mount for 7-8" tablets

The kit consists of the following RAM (B Size) components:

  • 1 x RAM Universal X-Grip Cradle for 7" Tablets
  • 1 x Double Clamp Arm (Length of your choice - See below)
  • 1 x RAM 3.3" Diameter Suction Cup Base with 1" Ball

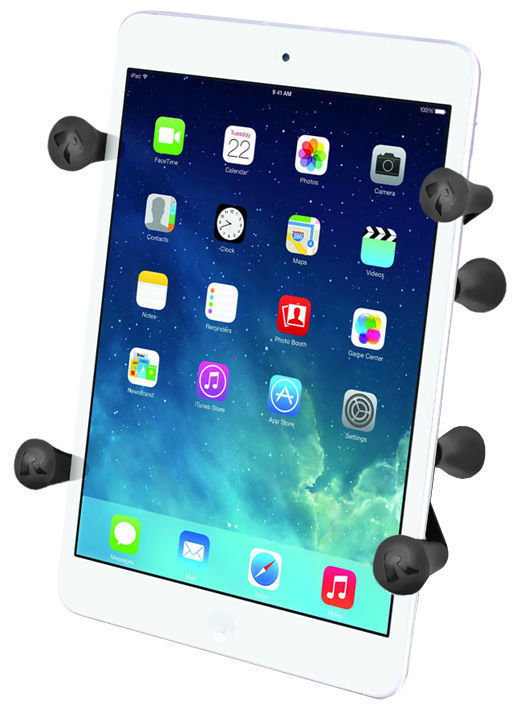

RAM Universal X-Grip Cradle for 7-8" Tablets

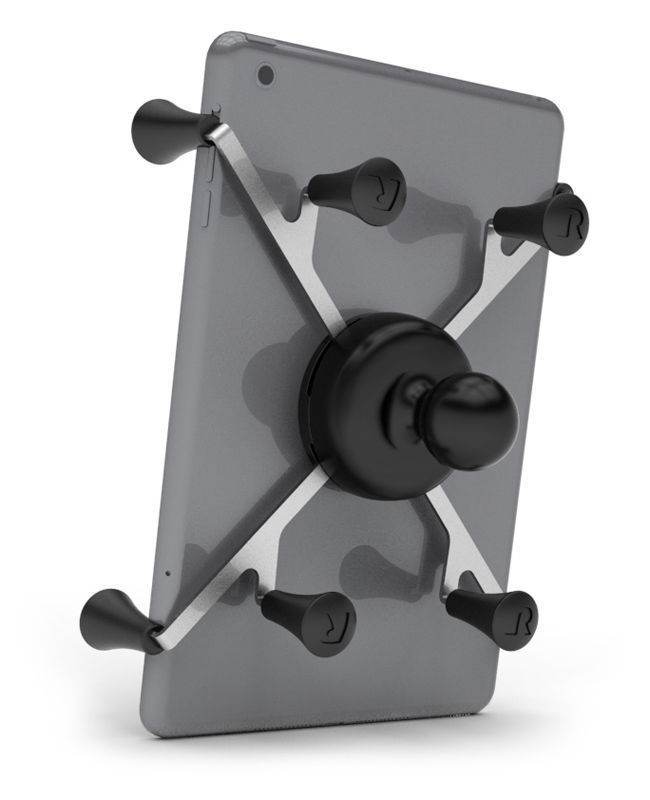

The X-Grip consists of a spring loaded cradle and 1" rubber ball connected to the back of the base.

Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet.

The X-Grip expands and contracts for perfect fit of most 7-8" tablets and includes a tether recommended for outdoor applications.

The cradle is compatible with handheld devices that will fit the dimensions listed below.

It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Cradle Dimensions

  • Minimum Width = 2.5" (Minimum Height = 7")
  • Maximum Width = 5.75" (Minimum Height = 4")
  • Depth = 0.875"

May not be suitable for some other tablet models or devices - please check dimensions first.

RAM Double Socket Clamp Arm (Select length prior to checkout);

  • SHORT (RAM-B-201U-A)        Overall Length: 6cm        Socket-To-Socket Length: 4.5cm
  • STANDARD (RAM-B-201U)    Overall Length: 9cm        Socket-To-Socket Length: 7.6cm
  • LONG (RAM-B-201U-C)          Overall Length: 15cm      Socket-To-Socket Length: 13.5cm

RAM 3.3" Diameter Suction Cup Base with 1" Ball

The base consists of a 3.3" diameter suction cup twist lock base..

The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for the best result, mount the suction cup on a glass or non-porous plastic surface.

** This listing includes one double socket Clamp Arm only. Please select the length required prior to checkout.
* Device shown for illustration purposes only and is not included in purchase.


Barcode # 793442934568
Brand RAM Mount
Shipping Weight 0.4000kg

Good Buying Experience

By: on 20 July 2019
All fittings OK except the suction cup which seems to have changed in composition from the one I purchased earlier and still use for my GPS This new one keeps falling off the windscreen with or without the tablet connected. Have cleaned the screen and tried wetting the cup, all to no avail so disappointing as RAM fittings are the only one's worth buying.

Mr Mobile Response
Hi Clive! Thank you for taking the time to leave a review. The issue you have described regarding the suction cup base is highly unusual. I would like to offer you a replacement base under warranty. I will send you an email shortly to discuss the details.
