RAM Mount Motorcycle Handlebar Universal X-Grip iPhone 8 7 6 Plus & XS Max

SKU: RAM-B-149Z-UN10U-P

Reviews RAM-B-149Z-UN10U-P RAM Mount Motorcycle Handlebar Universal X-Grip iPhone 8 7 6 Plus & XS Max /assets/thumb/RAM-B-149Z-UN10U-P.jpg?20200714031623 115
In Stock
SELECT Double Clamp Arm Length
QTY

Free Shipping on orders over $100* (*Excludes some areas)



In-Store Pick Up - $0.00
Please confirm what time you would like to pick the order up in the delivery instructions and we will do our best to have the order ready for you upon arrival.

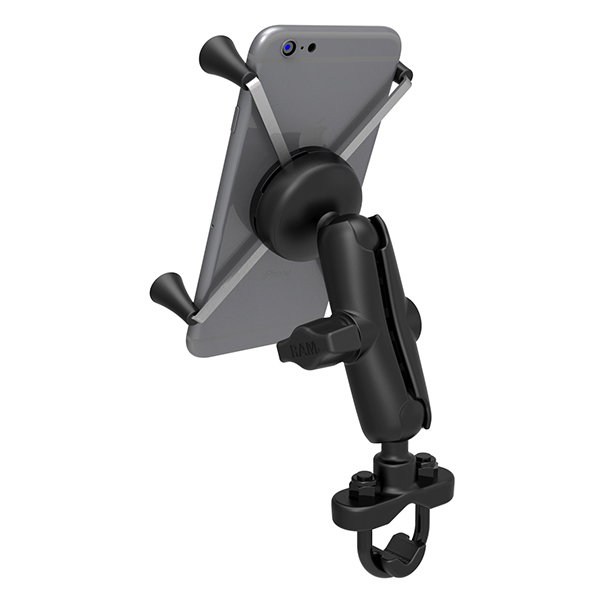

RAM Motorcycle Mount Universal X-Grip for Large phones with U-Bolt base

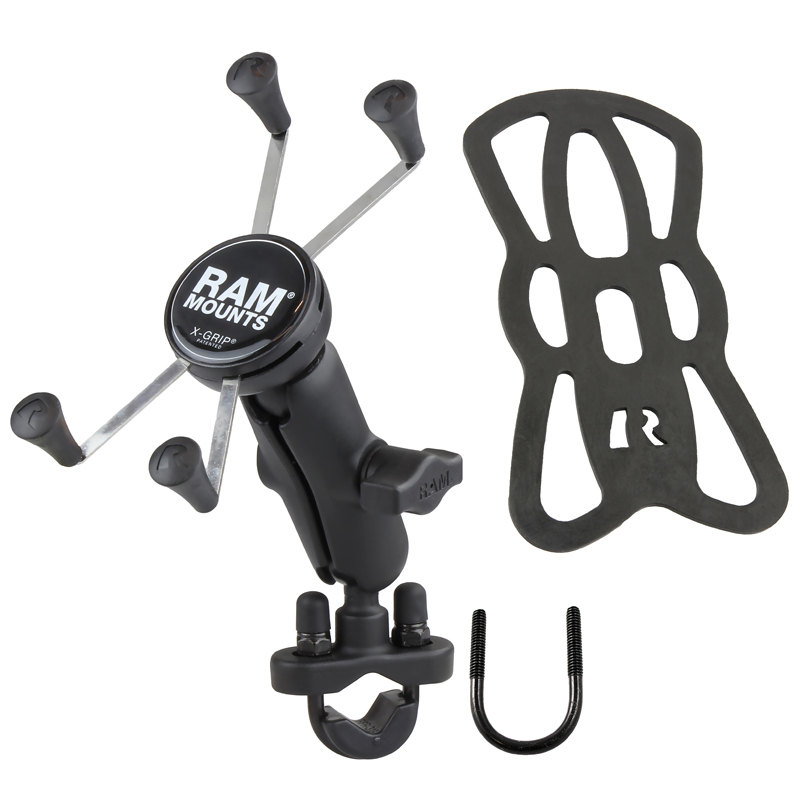

The Handlebar Rail Mount consists of the following RAM (B Size) components:

  • 1 x RAM Universal X-Grip® Large Phone/Phablet Cradle
  • 1 x Double Clamp Arm (Length of your choice - See below)
  • 1 x U-Bolt Rail Base

Compatible Devices & Models

  • iPhone 6 7 8 Plus & XS Max
  • Samsung GALAXY Note and Note 2, 3, 4 & 5 9 models
  • Samsung GALAXY Mega 5.8 & 6.3
  • HTC Desire 816
  • Nokia Lumia 920

Not suitable for iPhone 6 or some Samsung series. Please see our listing for the UN7BU (Smaller X-Grip) option.

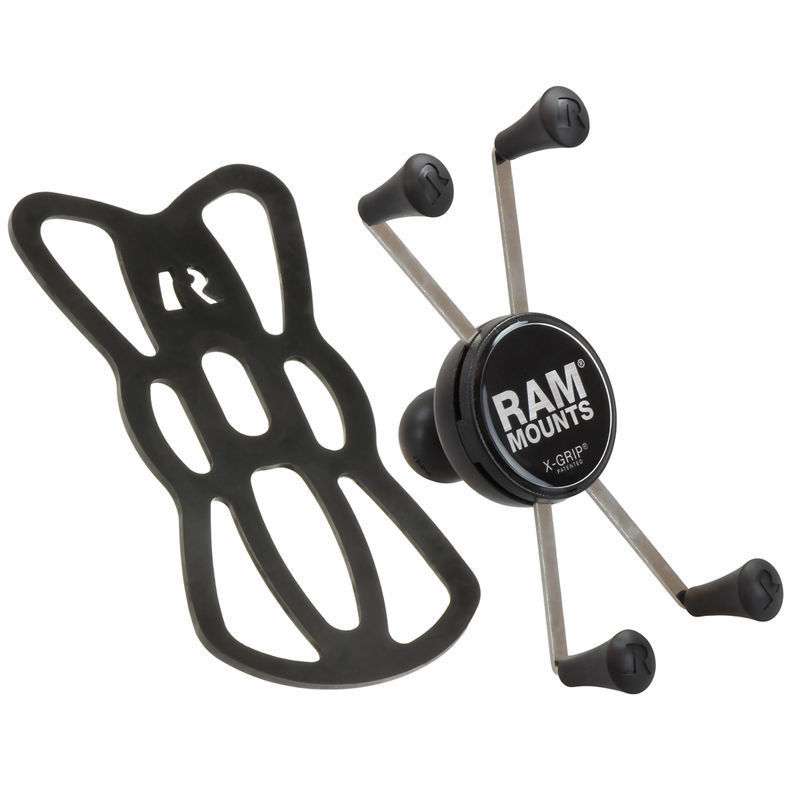

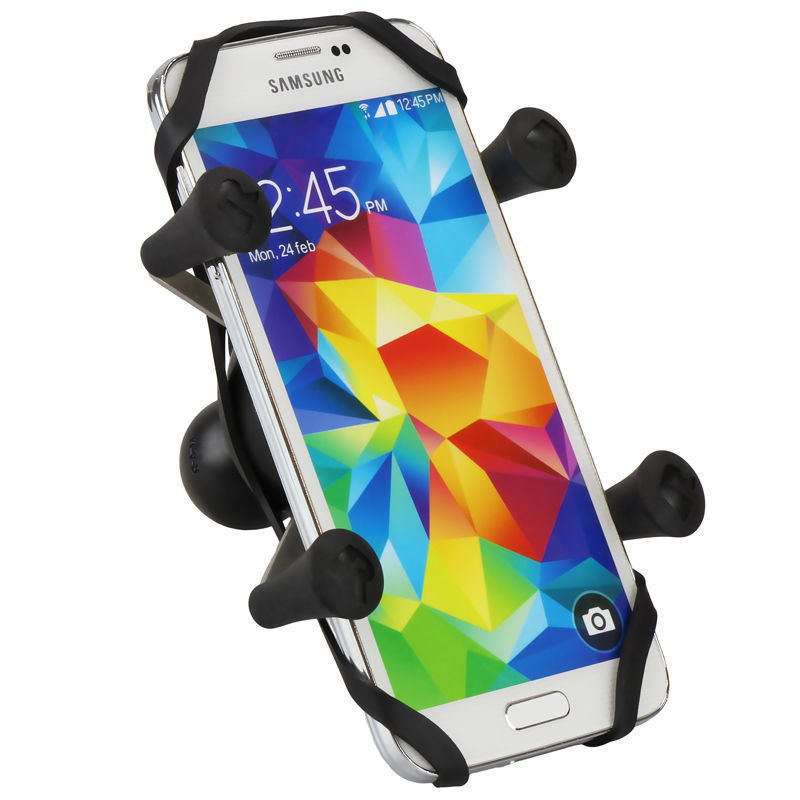

RAM Universal X-Grip® Large Phone/Phablet Cradle

The Univeral X-Grip has a clean and clever four leg design that sports great holding power.

The X-Grip® includes a device tether recommended for outdoor applications.

The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Cradle Dimensions

  • Minimum Width = 1.75" (Minimum Height = 5.5")
  • Maximum Width = 4.5" (Minimum Height = 3.25")
  • Depth = 0.875"

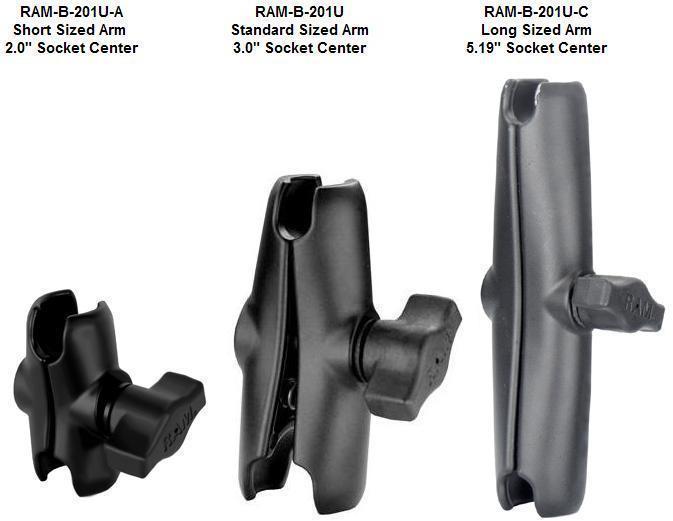

RAM Double Socket Clamp Arm (Select length prior to checkout);

  • SHORT (RAM-B-201U-A) Overall Length: 6cm Socket-To-Socket Length: 4.5cm
  • STANDARD (RAM-B-201U) Overall Length: 9cm Socket-To-Socket Length: 7.6cm
  • LONG (RAM-B-201U-C) Overall Length: 15cm Socket-To-Socket Length: 13.5cm

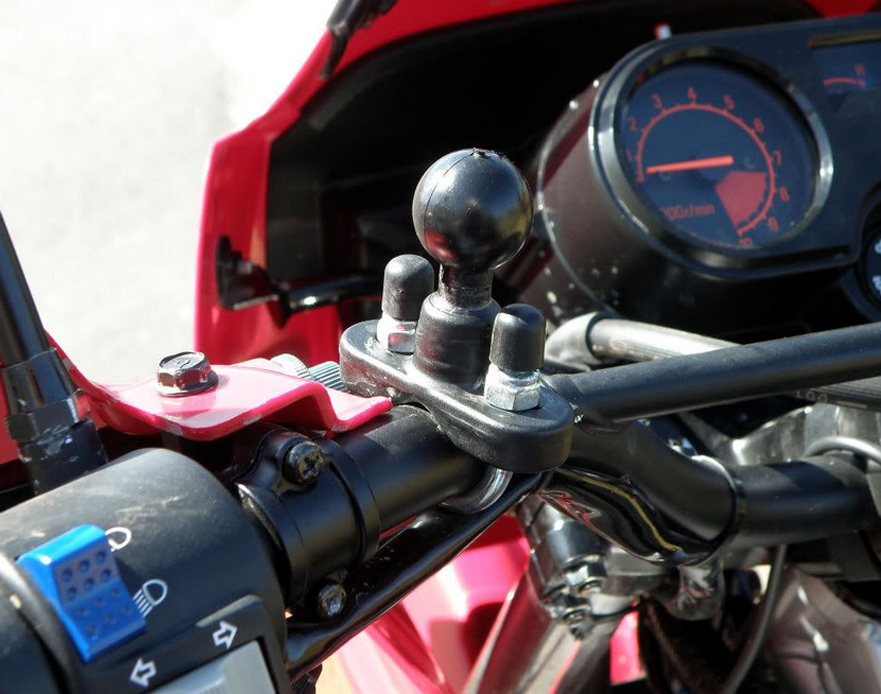

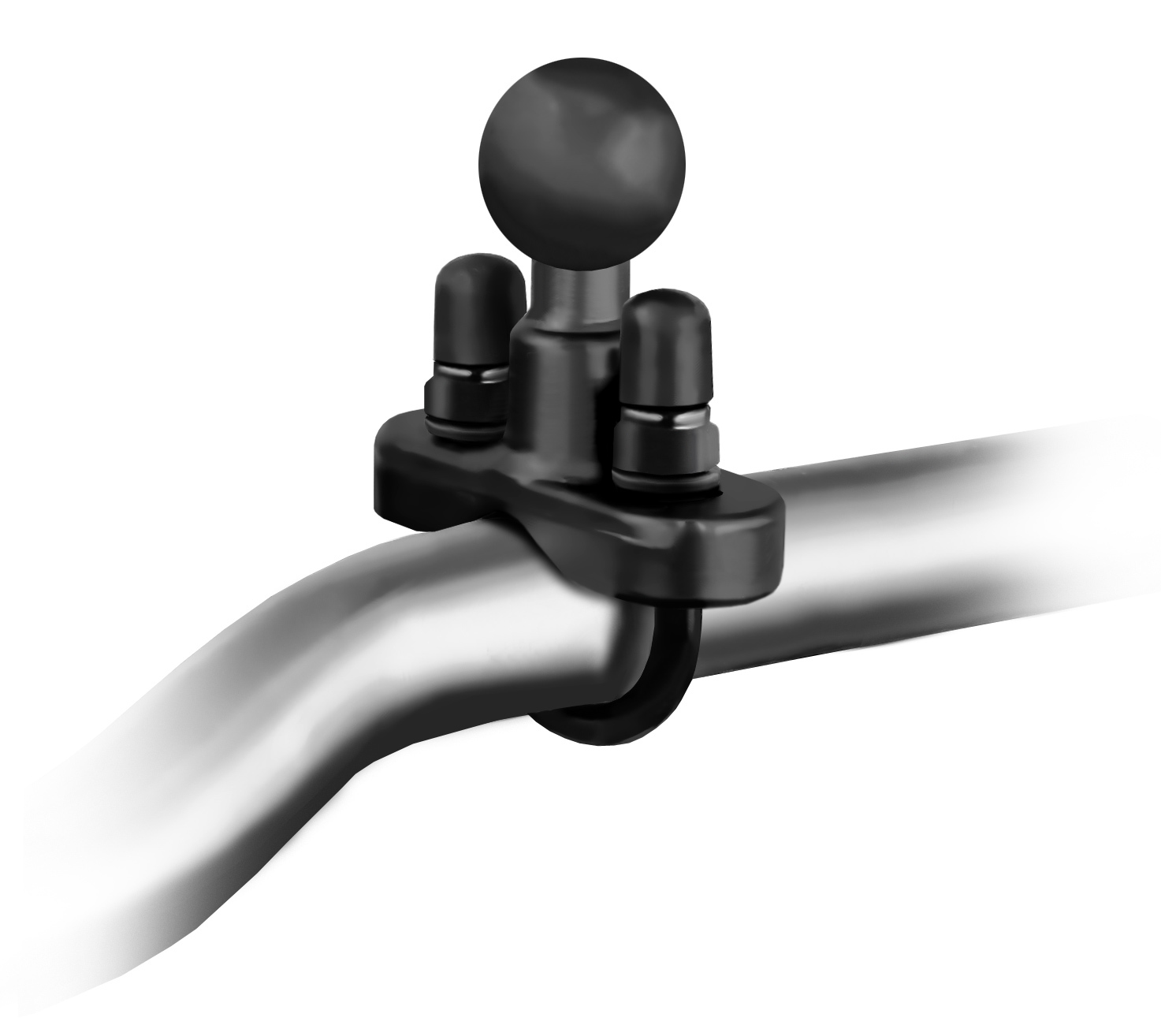

RAM U-Bolt Rail Base

The RAM motorcycle handlebar base contains a 1" rubber ball designed to sit at right angles to the mounting rail.

The Zinc coated metal u-bolt accommodates rails in diameter from 1.27cm (0.5") to 3.18cm (1.25") in diameter.

Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".


** This listing includes one double socket Clamp Arm only. Please select the length required prior to checkout.
* Device shown for illustration purposes only and is not included in purchase.

(RAM-B-149Z-UN10U-P)

SKU RAM-B-149Z-UN10U-P
Barcode # 793442940682
Brand RAM Mount
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
