RAM Mount Motorcycle Handlebar Mount with dual USB plug for PLUS sized Phones

SKU: RAM-B-408-112-15-UN10-USB

Reviews RAM-B-408-112-15-UN10-USB RAM Mount Motorcycle Handlebar Mount with dual USB plug for PLUS sized Phones /assets/thumb/RAM-B-408-112-15-UN10-USB.jpg?20200714031847 174.95
In Stock
QTY

Free Shipping on orders over $100* (*Excludes some areas)



In-Store Pick Up - $0.00
Please confirm what time you would like to pick the order up in the delivery instructions and we will do our best to have the order ready for you upon arrival.

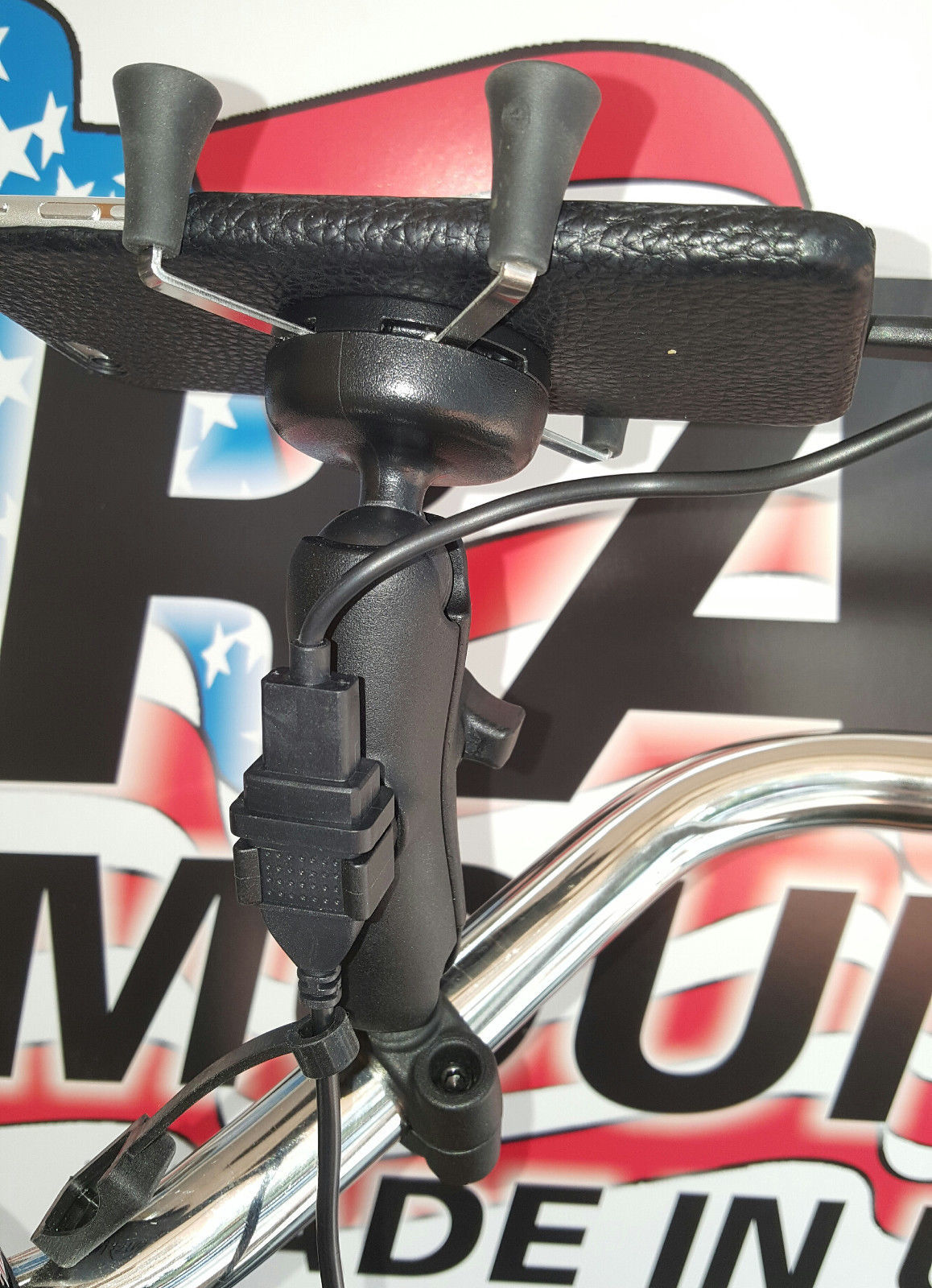

Motorcycle USB Powered Mount with RAM Mount Handlebar Rail Base & Universal X-Grip for Mobiles

This is a Complete USB Powered Motorcycle Handlebar rail Mount for Large sized mobiles such as iPhone 6 Plus.

The Rail Base Mount consists of the New RAM Torque bar mount RAM-B-408-112-15U with 1" ball and accommodates rails 1 1/8"-1 1/2" (28.57mm - 38.1mm)

Sizing inserts are included to provide a snug fit and protection of the rail.

The RAM Torque mount is similar to the existing RAM U-Bolt in a neat low profile option

a connecting RAM Double socket Clamp Arm connects the RAM X-Grip cradle and the handle bar mount.

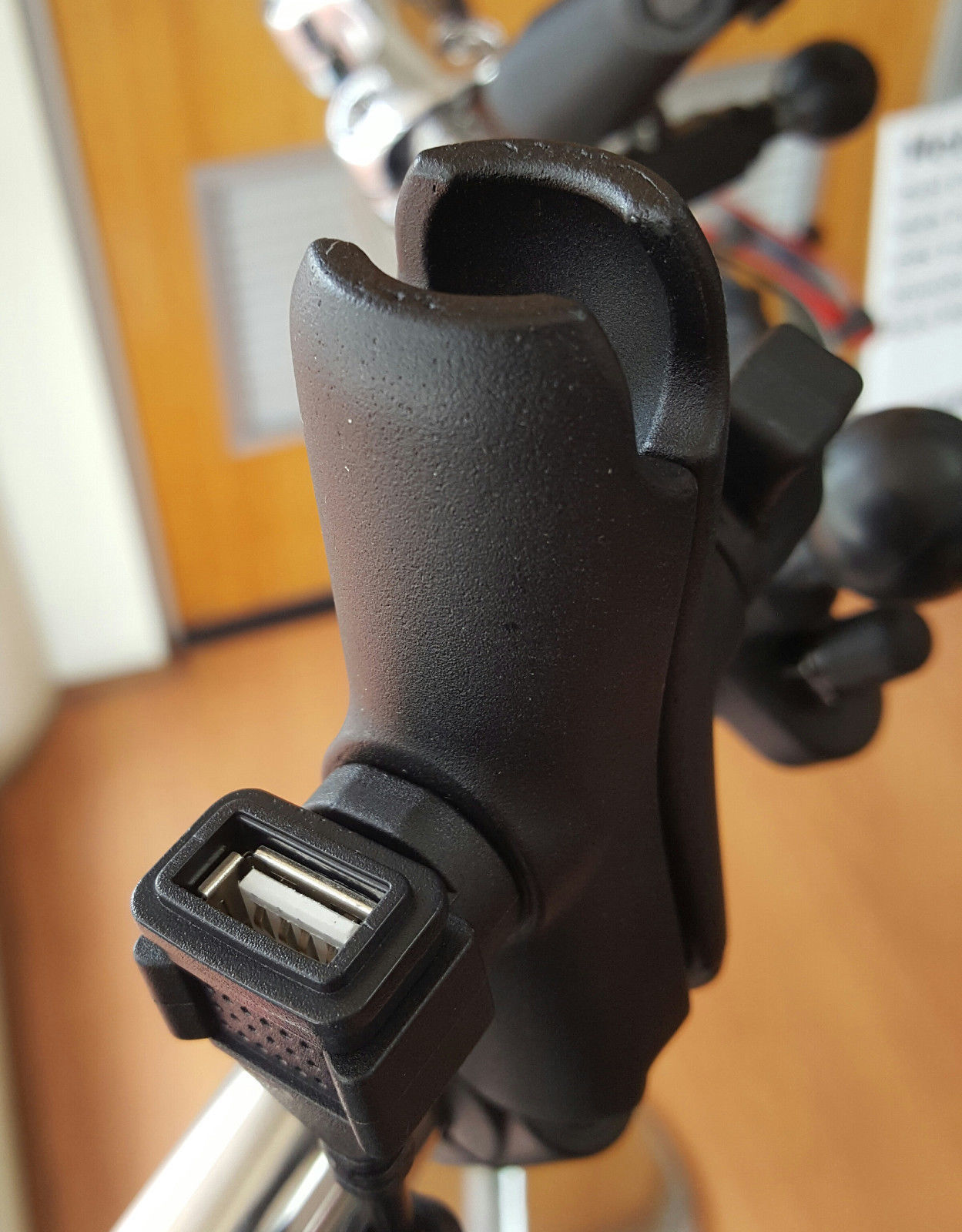

The USB power socket is a new unique SINGLE USB port with built in hex head bolt, is compatible with and replaces the existing bolt found in a RAM Double Clamp Arm


Motorcycle DUAL USB Power Cable with 1/4"-20 Hex Head Bolt RAM Mount compatible

Motorcycle Waterproof Phone GPS Dual USB Power Supply Socket Charger Port suits RAM Mount Double Clamp Arms.

This power solution hardwires directly to your motorcycles battery via direct connection to the positive and negative nodes of the motorcycle battery.

Two power leads each support a single USB Port.  One USB designed to be mounted at the front of the Motorcycle, either by attaching directly to the RAM Double clamp arm with the Hex head bolt, or onto the handlebar.  The second lead with single USB is designed with the pillian rider in mind, and can be mounted thru to the back of the bike.

All hardware to mount via the RAM double socket or by clamp to the handlebar is supplied.

The waterproof SAE connection allows flexibility to remove the top mount whilst hardwired section remains in place.

The 1/4"-20 Hex head bolt and DUAL USB port are supplied as one piece, there is a waterproof cap to place over the exposed USB port when not in use.

Also supplied in the pack are three phone cables, a USB-C, micro usb and an iOS 8 Pin cable with USB 2.0 waterproof cap.


What comes in the package:

  • Battery connection cable with voltage/amp meter
  • 2 x single USB socket  connected on one power lead
  • USB-C Charge Cable - 30cm
  • Micro USB charge cable - 30 cm
  • Apple 8 pin iOS charge cable - 30 cm
  • Cable Ties

Technical Specs

  • Input DC 12-24V
  • Output DC 5V = 2.4 amps
  • Cable Length: 2.5m
  • Fuse: 10A
  • USB Ports: 2

** Images of Double Clamp Arms are for illustration only and for purpose of showing how this Power harness mounts and are NOT included in this listing. RAM Products are sold Separately.

Customers please note: Some assembly required. Mechanical skill/knowledge is required to fit this product onto your bike correctly and safely.


What comes in the POWER pack

  • Battery connection cable with voltage/amp meter - 180 cm
  • Single USB socket attached to 1/4"-20 bolt with Hex head length 40 cm
  • Micro USB charge cable - 20 cm
  • Apple 8 pin iOS charge cable - 20 cm
  • Cable Ties

Technical Specs

  • Input DC 12-24V
  • Output DC 5V 3.0 amps
  • Battery Harness -180 cm USB socket with Hex head bolt - 40 cm

RAM RAM-HOL-UN10BU Universal X-Grip for 5.7" SMART phones.

Universal X-Grip the best universal phone cradle mount and now includes a rubber tether for use in high vibration environments.

The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit for almost any phone with or without a case

The cradle is compatible with handheld devices that will fit the dimensions listed below such as iPhone 6 Plus, Samsung Galaxy note 3, 4, 5,

Cradle Dimensions

  • Minimum Width = 4.5cm
  • Maximum Width = 11.4 cm
  • Depth = 2.2 cm

(RAM-B-408-112-15-UN10-USB)

SKU RAM-B-408-112-15-UN10-USB
Model # RAM-B-408-112-15-UN10-USB
Brand RAM Mount
Shipping Weight 0.6000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.100m
