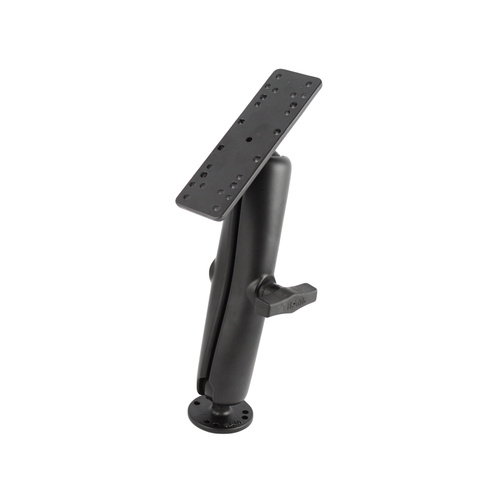

RAM 1.5" Ball Mount with 6.25" X 2" Rectangle Base, Double Socket Arm & 2.5" Round Base

The RAM-111U is a complete drill down flat surface mount for various models of fishfinders and GPS devices.

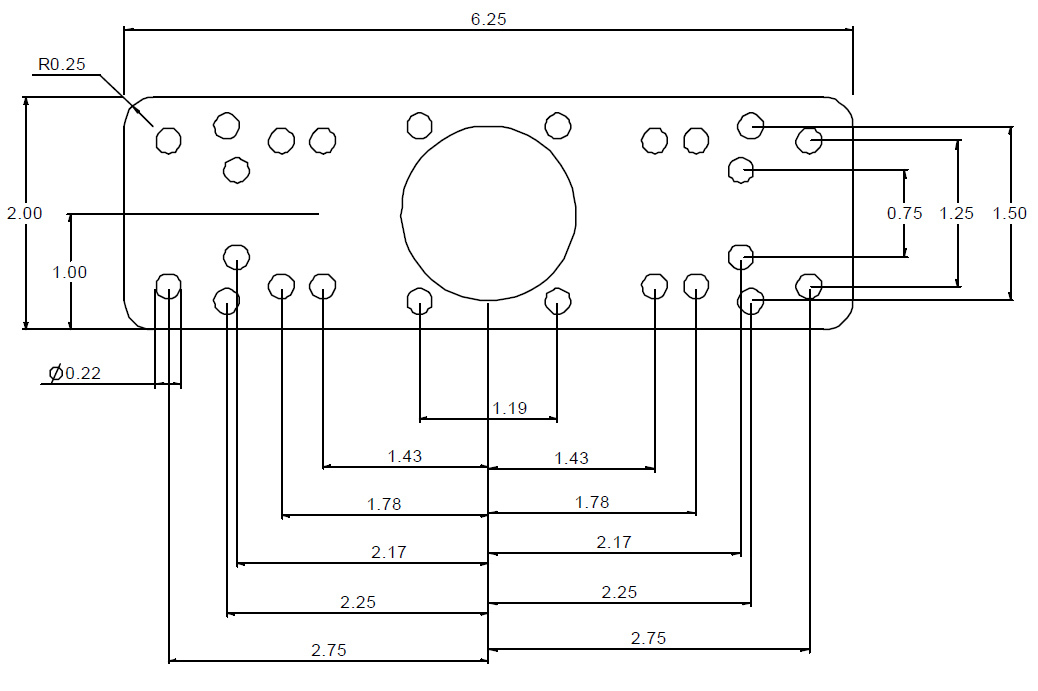

The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

The RAM-111U consists of the follow C size 1.5" components:

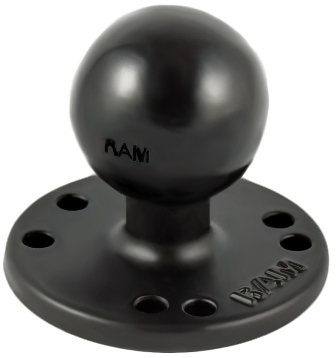

  • 1 x RAM-202U 2.5" diameter round base with 1.5" ball
  • 1 x RAM-201U Double socket arm for 1.5" C size balls

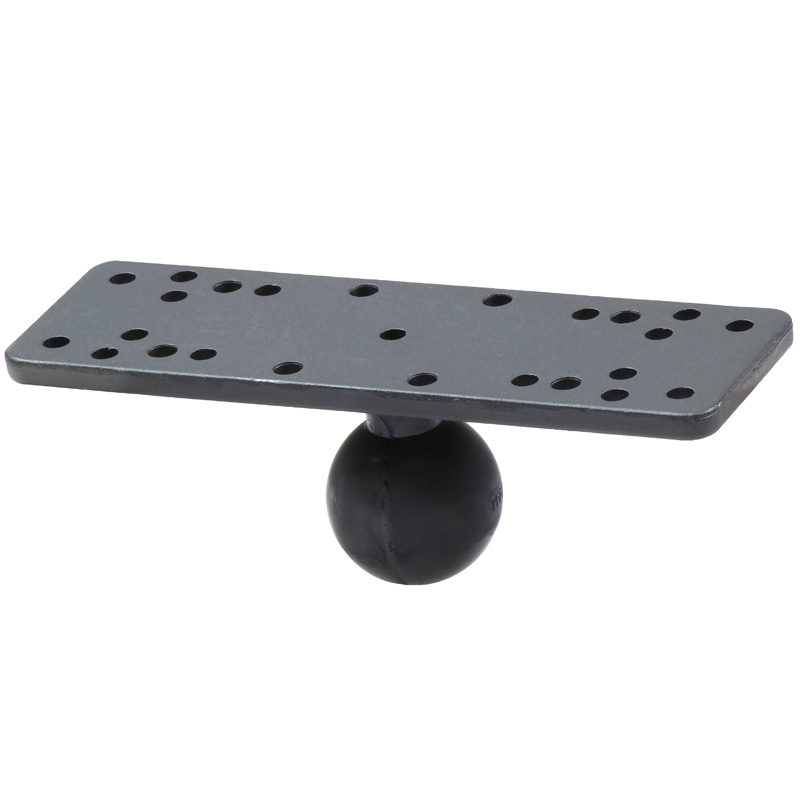

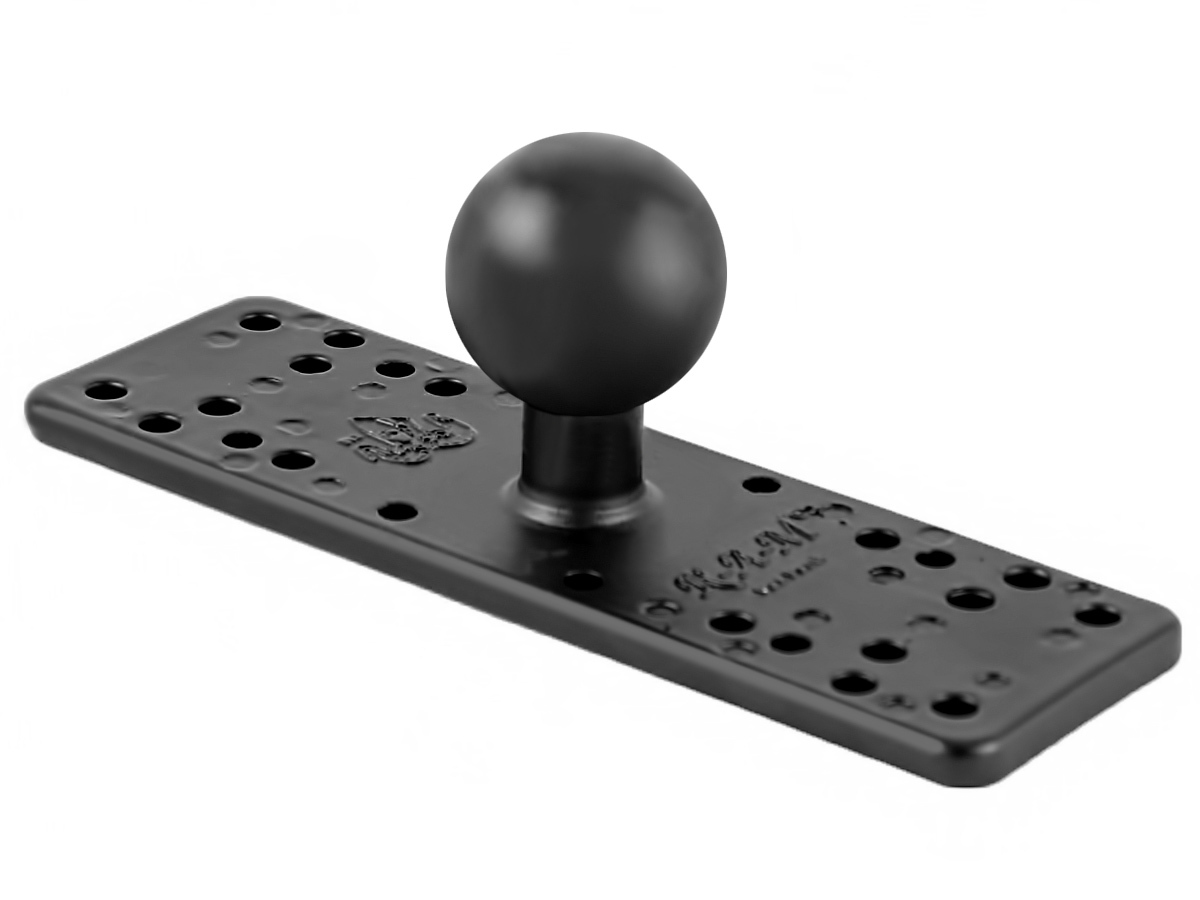

  • 1 x RAM-111BU 6.25" x 2" rectangle base.

Compatible Devices

  • Garmin Fishfinders/Chartplotters
  • Humminbird Fishfinders/Chartplotters
  • Lowrance Fishfinders/Chartplotters
  • Raymarine Fishfinders/Chartplotters
  • Si-Tex Fishfinders and GPS Chartplotters

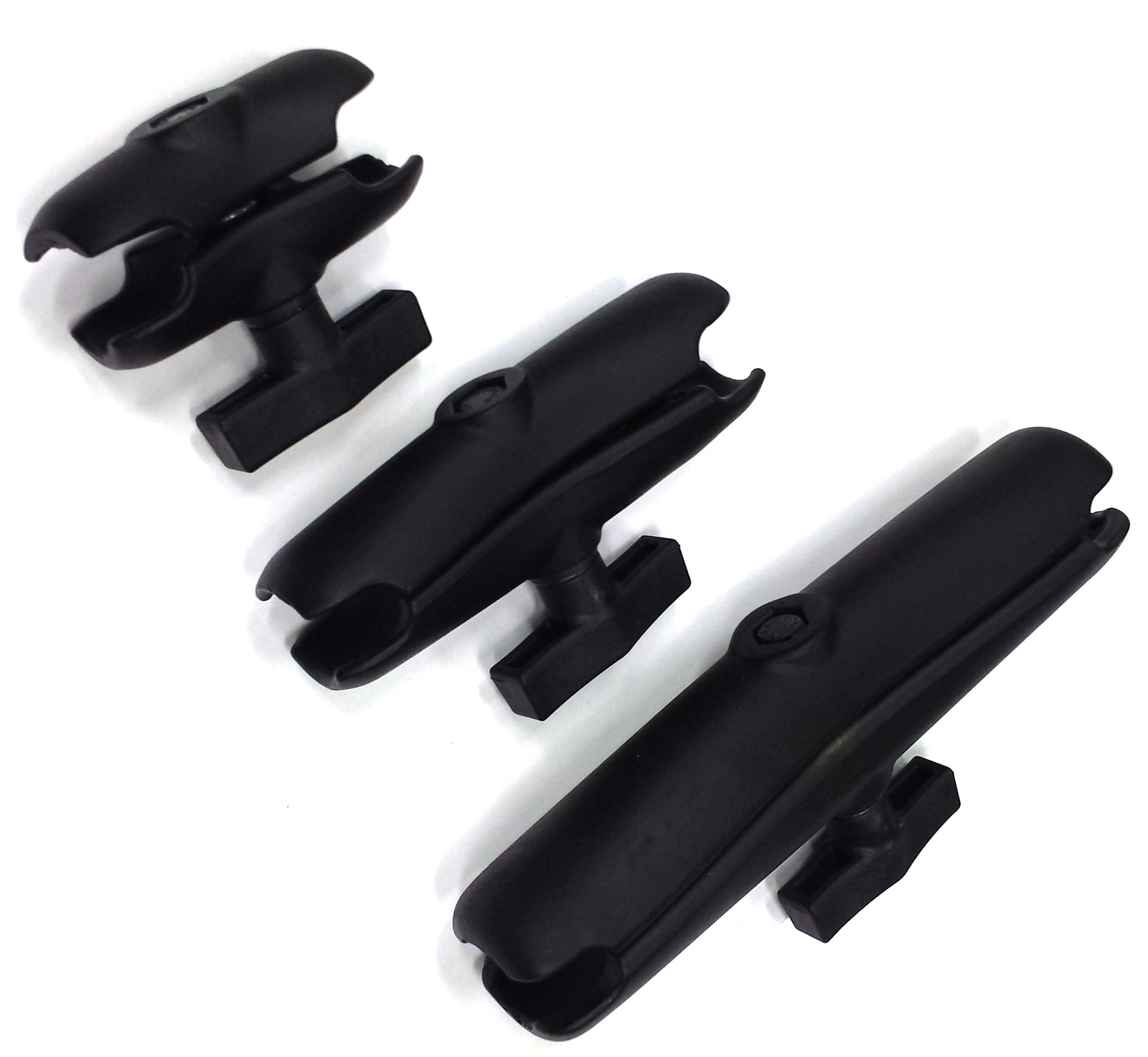

RAM C size 1.5" Double Socket Clamp Arm (Select length prior to checkout);

  • SHORT (RAM-201U-B)        Overall Length: 8.8cm        Socket-To-Socket Length: 5.7cm
  • STANDARD (RAM-201U)    Overall Length: 14.2cm        Socket-To-Socket Length: 11.4cm
  • LONG (RAM-201U-D)          Overall Length: 23.1cm      Socket-To-Socket Length: 20.3cm

** This listing includes one double socket Clamp Arm only. Please select the length required prior to checkout.

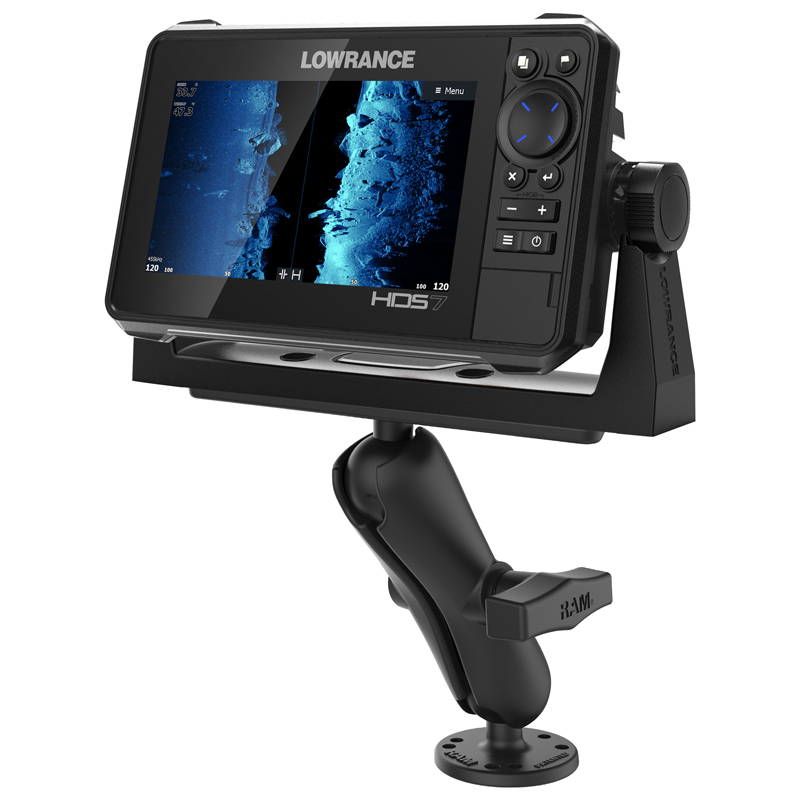

* Device shown for illustration purposes only and is not included in purchase.


Model # RAM-111U-P
Barcode # 793442001116
Brand RAM Mount
Shipping Weight 1.5000kg
