RAM Mount EZ-Roll'r Powered Dock Cradle with USB-C Charging for Samsung Tab Active2 Active3 & Active 5

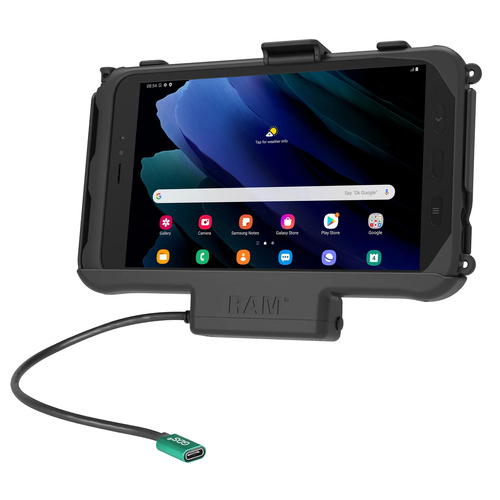

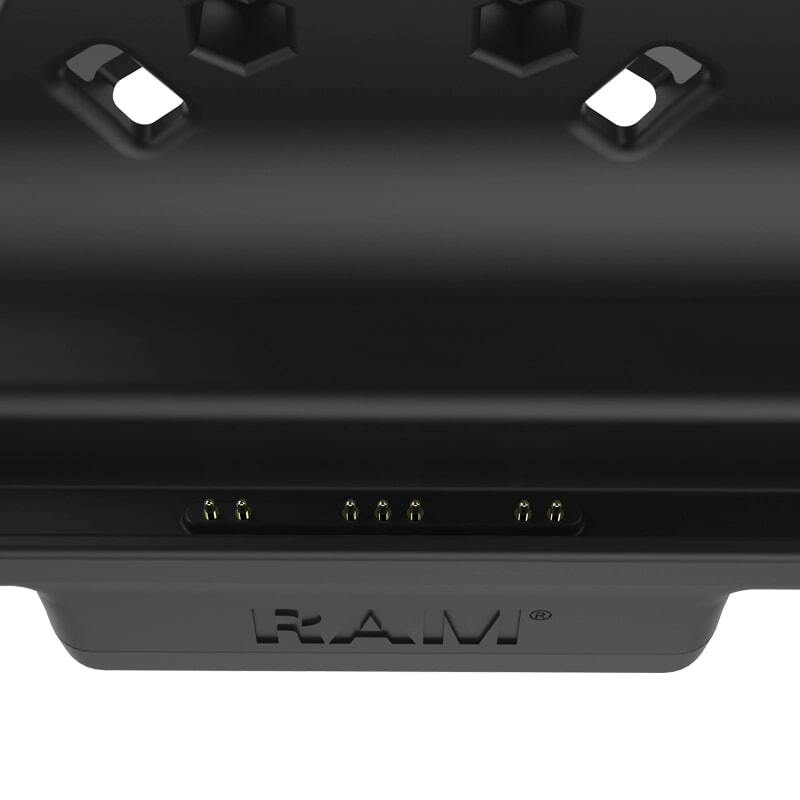

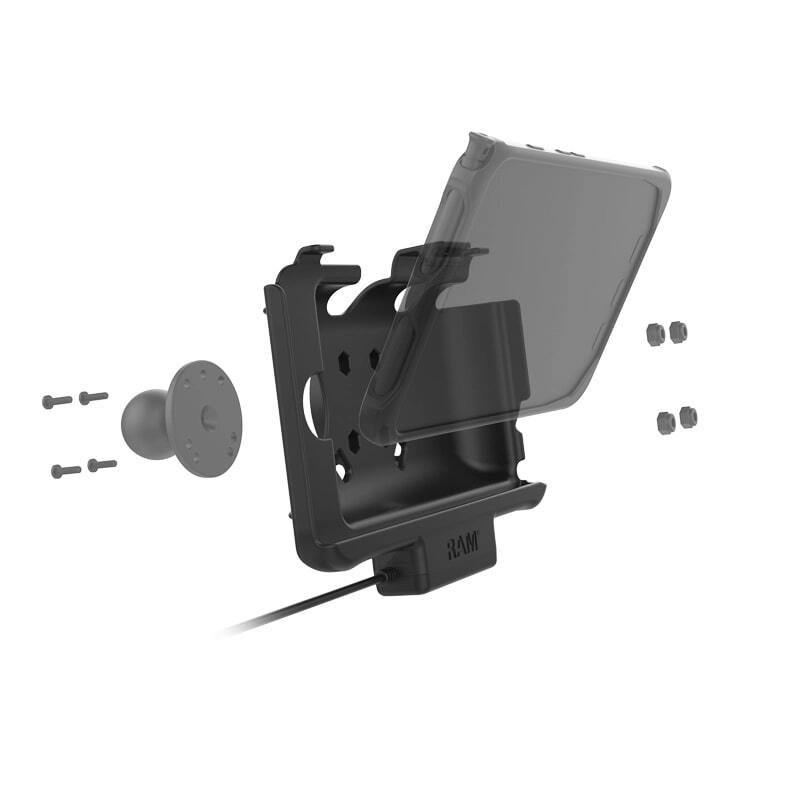

The RAM^® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS^® pogo pins. This modular dock is compatible with the RAM^® Skin^™, factory device skin, and GDS^® Hand-Stand^™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM^® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.



Compatible Devices

• Samsung Tab Active5
• Samsung Tab Active3
• Samsung Tab Active2

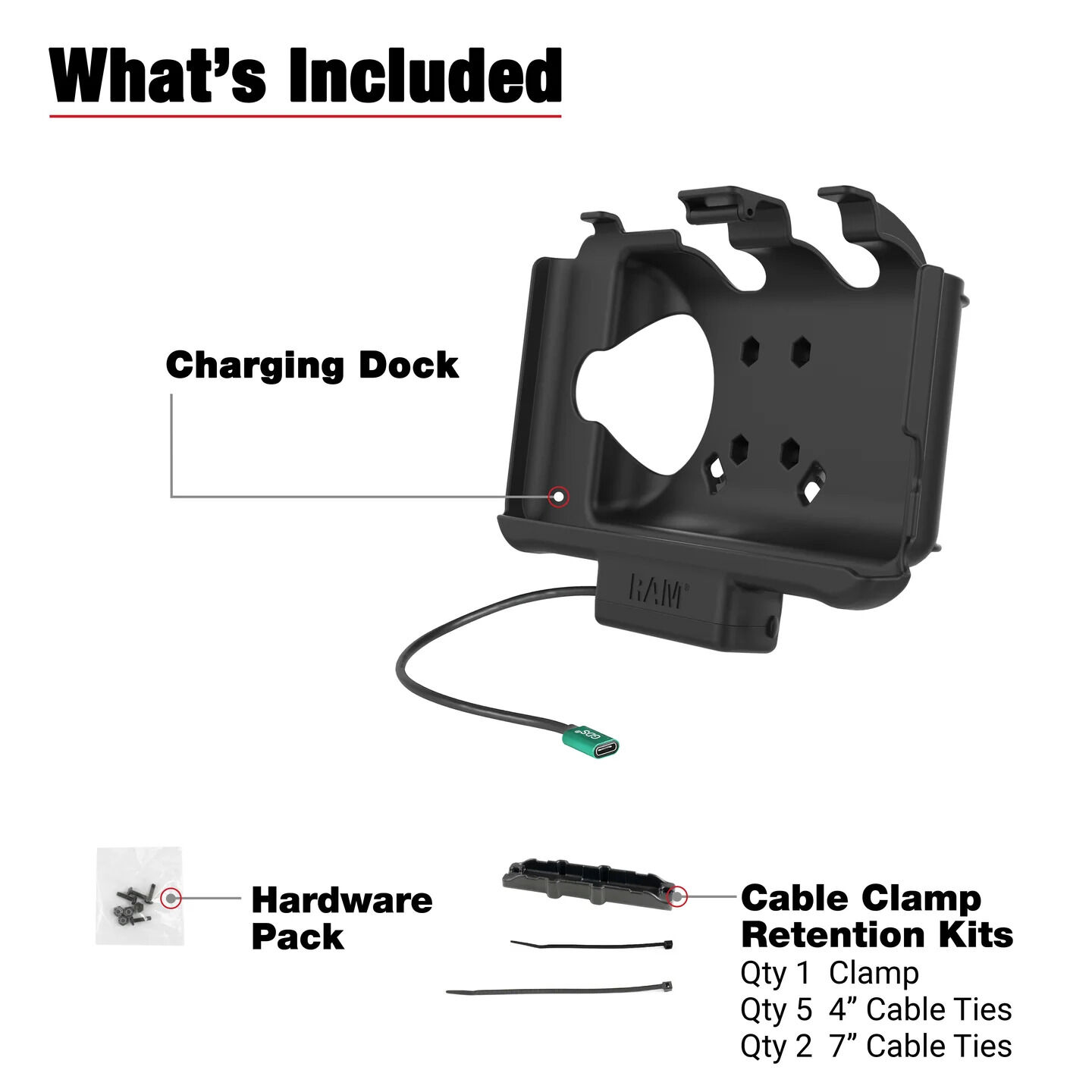

Included Hardware

• #8-32 x 5/8" Machine Screws x 4
• #8-32 Nylock Nuts x 4
• Optional Cable Clamp Housing x 1
• Large Cable Ties x 2
• Small Cable Ties x 5



Product Dimensions

• Width: 9.24"
• Height: 6.34"
• Depth: 2.57"



Input Voltage

• 5.3-5.4VDC



Output Voltage

• 5VDC



Power output:

• 500mA



Input connector:

• USB Type-C Female



Input cable length:

• 215mm



Weight

• 325g (approx) without device



Additional Info

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active5 & Active3 .
