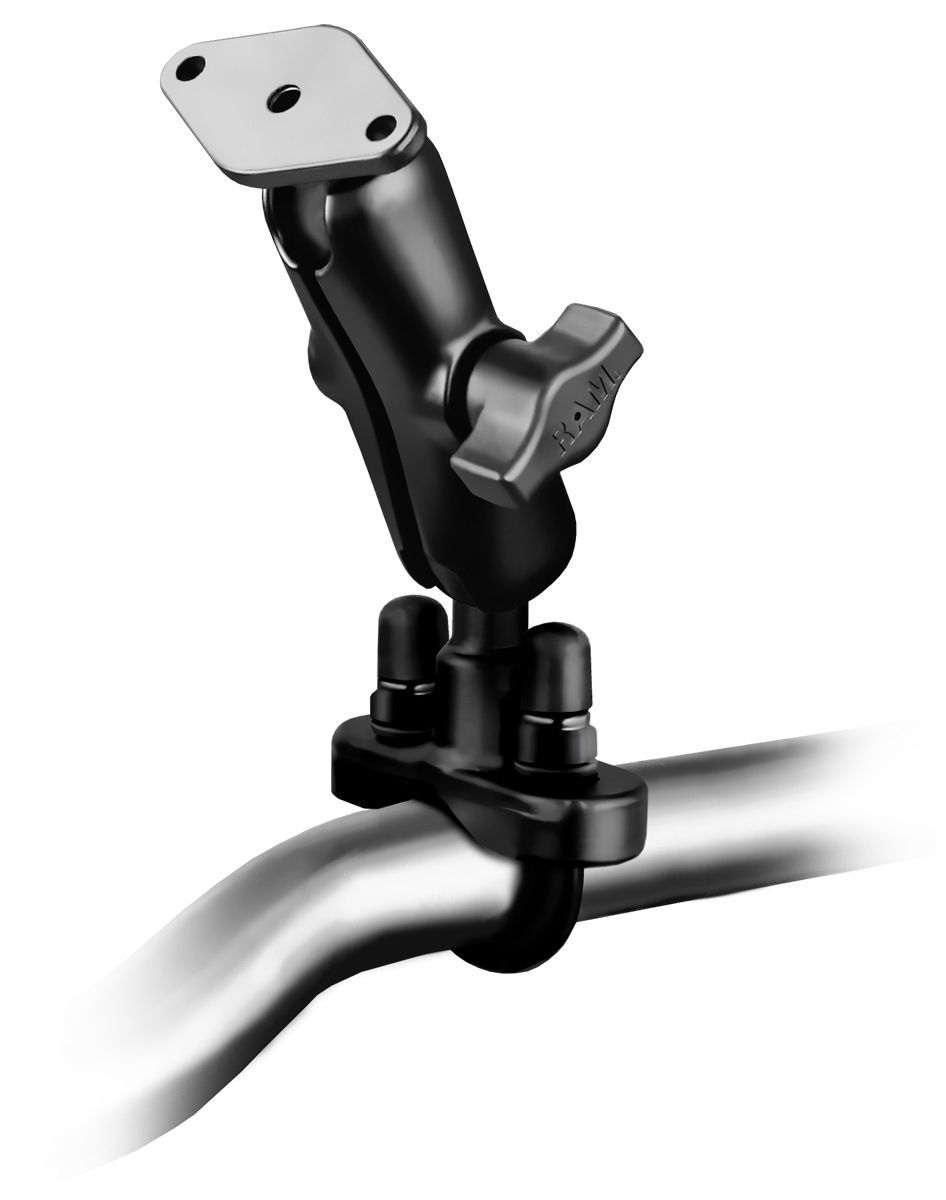

RAM motorcycle Bike Rail Handlebar Mount SPOT GEN 3 GPS

The Motorcycle handlebar Bike rail mount for SPOT GEN 3 GPS .

The Complete mount consists of the following 4 x RAM (B Size) components:

• 1 x RAM Cradle for the SPOT GEN 3
• 1 x RAM 2.43" x 1.31" Diamond Ball Base with 1" Ball
• 1 x RAM Double Clamp Arm
• 1 x RAM Rail Base with Stainless Steel U-Bolt & 1" Ball for Rails from 0.5" to 1" in Diameter

---

RAM EZ-Roll'r™ Model Specific Cradle for the SPOT Gen3™ (RAM-HOL-SPO4U)

The RAM-HOL-SPO4U consists of a high strength composite cradle and hole pattern that will allow the attachment to all RAM components.

Compatible with the SPOT Gen 3 device only

Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

---

RAM Double Socket Clamp Arm ;

• STANDARD (RAM-B-201U) Overall Length: 9cm Socket-To-Socket Length: 7.6cm

---

RAM Rail Base with U-Bolt

The RAM-B-231U consists of a 1" rubber ball designed to sit at right angles to the mounting rail.

The rust proof metal u-bolt accommodates rails in diameter from 0.5" to 1" in diameter.

Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
