RAM GPS GOLF Cart glare shield windscreen Mount Finger Grip Cradle

SKU: RAM-B-177-UN4U

Reviews RAM-B-177-UN4U RAM GPS GOLF Cart glare shield windscreen Mount Finger Grip Cradle /assets/thumb/RAM-B-177-UN4U.jpg 120.00
In Stock
QTY

Free Shipping on orders over $100* (*Excludes some areas)



In-Store Pick Up - $0.00


The RAM-B-177-UN4U is a full kit that will allow you to mount a range of phones and devices onto the edge of a flat surface.


The RAM-B-177-UN4U consists of the following RAM (B Size) components:

  • 1 x RAM Universal Finger-Grip™ Phone/Radio Cradle (RAM-HOL-UN4U)
  • 1 x RAM SHORT Size Double Clamp Arm (RAM-B-201U-A)
  • 1 x RAM 1" x 1" Glareshield Clamp Base with 1" Ball (RAM-B-259U)
  • 1 x RAM Diamond Base with 1" Ball (RAM-B-238U)

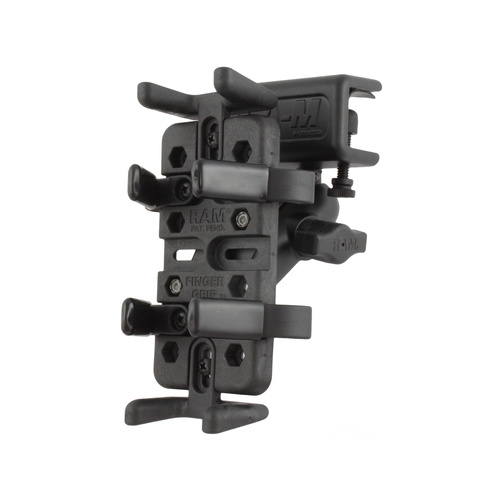

RAM Universal Finger-Grip™ Phone/Radio Cradle (RAM-HOL-UN4U)

The RAM-HOL-UN4U is designed to hold a large amount of cell phones and electronic devices.

The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device.

The fingers open by squeezing the ends to open the small finger arms.

The bottom of the cradle includes a back plate that adds support to the device being held by the mount.

The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including Samsung & LG accessories.

The spine plate contains the universal AMPs and 1.5" x 2" hole patterns.

Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

Height Dimensions

  • 5.25" Min - 6.0" Max
  • Note: The top and bottom plates can be removed for larger devices.

Using Short Arm Side Clamps

  • Width: 1.25" Min - 3.0" Max
  • Depth: 0.75" Max

Using Medium Arm Side Clamps

  • Width: 1.5" Min - 3.5" Max
  • Depth: 1.25" Max

Using Long Arm Side Clamps

  • Width: 2.25" Min - 3.5" Max
  • Depth: 1.6" Max

May not be suitable for some phone models or devices - please check dimensions first.


RAM Double Socket Clamp Arm

  • SHORT (RAM-B-201U-A) Overall Length: 6cm Socket-To-Socket Length: 4.5cm

RAM 1" x 1" Glareshield Clamp Base with 1" Ball (RAM-B-259U)

The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 5/8" thick.

Popular mounting edges include a car side window edge lip or glare shield on an airplane.

The base has two composite bolts that, when tightened, clamp the base to the lip surface.

A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application.


** This listing includes one double socket clamp arm only. Please select the length required prior to checkout.
* Device shown for illustration purposes only and is not included in purchase.

(RAM-B-177-UN4U)

SKU RAM-B-177-UN4U
Model # RAM-B-177-UN4U
Barcode # 793442905575
Brand RAM Mount
Shipping Weight 0.4500kg
